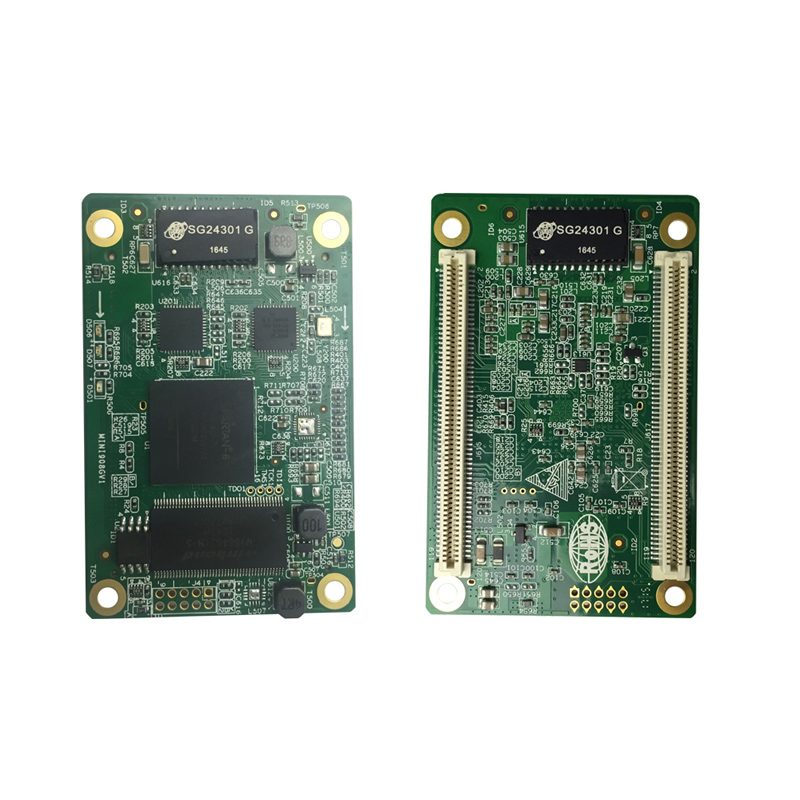

Mini908M Receiver Card

$16.00

Loading Capacity: 1024×256 Pixel

1) Single card can support 24- group RGB parallel data output mode;
2) Supports 64-group serial data output mode;
3) Support network cable BER test;
4) Maximum supports 1024X256 pixels;

Guaranteed Safe Checkout

Mini908M receiver card is a ultra-small size full-featured high-end mini-receiver card for led display. Mini908M receiver card specific circuit and program design, can effectively reduce the system’s electromagnetic radiation can effectively help products easily through the EMC certification.

Features:

1. It has all functions of 8th and 9th generation receiver cards and it is completely compatible with them;

2. Supports 24-group parallel RGB data output mode;

3. Supports 64-group serial data output mode;

4. Realizes high refresh and high gray level effect;

5. Supports general driver IC and PWM IC;

6. Supports any typeof scan within 32 scan, and supports 595 and other serial decoding scan;

7. Supports brightness and color pixel-by-pixel calibration;

8. Maximum supports 1024X256 pixels;

9. Supports 12-bit HDMI colors input (requires the 9th generation sending card);

10. Use 18-bit signal processor, maximum supporting 18-bit (260,000) greyscale (each of red, green and blue);

11. Supports single-card color space conversion;

12. Supports configuration file readback;

13. Supports pixel fault detection(requires a dedicated chip) ;

14. Supports hot backup with dual receiver cards, dual power supplier, etc.;

15. RoHS compliant;

16. CE-EMC compliant.

重量 0.03 公斤
尺寸 7 × 4.5 × 0.5 厘米
