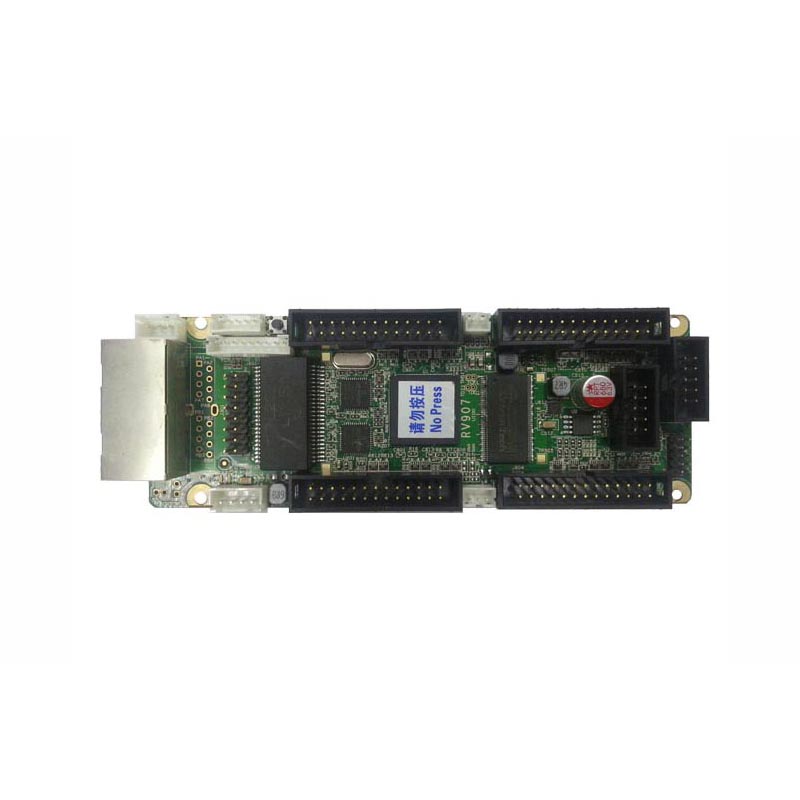

RV907H Receiver Card

RV907H receiver card is designed specifically for lease screen. Not only compatible with generation RV807/817/827/837 completely, RV907H/927H/937H linsn hub card but also take care the needs of led lighting and led curtain.

Features:

1. Compatible with RV801, has all the features of RV801;

2. Small size (479mm X 1365mm), mounting holes are same with RV802;

3. Four output interfaces can directly drive module (save hub card);

4. Each of the 4 interfaces has up to 6 groups parallel-data; total 24 groups of parallel data interface to achieve higher refresh rate;

5. Provide a 90 degree 26-Pin interface, convenient PCB docking design;

6. Provide 16 groups serial-data for led lighting and led curtain;

7. Each interface has VCC pin to get power supply for control system from led module. No need to get extra power supply for control system;

8. support 12-bit HDMI colors input (required the 9th generation sending card);

9. using18-bit signal processor, maximum support 18-bit (260,000) gray (each of red, green and blue);

10. Single card maximum supports 1024X256 pixels, and 1024 grades single pixel chromaticity correction;

11. Supports single-card color space conversion;

12. Support program replication;

13. Supports pixel fault detection (requires a dedicated chip support);

14. Support network cable BER test;

15. Support flat cable fault detection;

16. Support the cabinet-door monitoring (open/close);

17. Two lines fan-speed monitoring;

18. Three lines Voltage monitoring: one for the system, two for cabinet power;

19. Temperature monitoring;

20. Humidity monitoring (humidity sensor sold separately);

21. Smoke monitoring (smoke module sold separately);

22. In line with EU standards CE-EMC.
