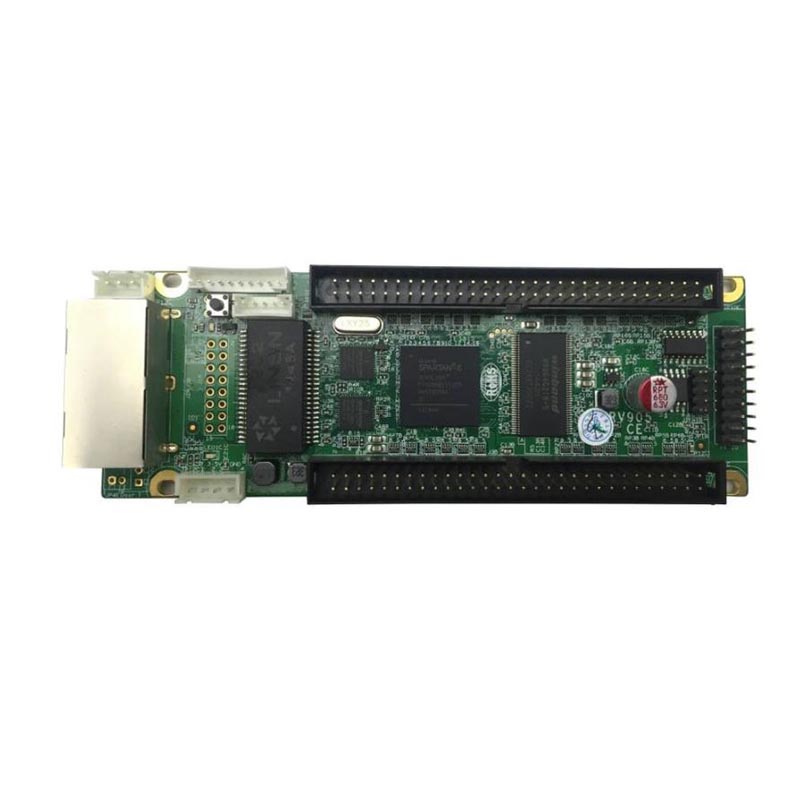

RV905K Receiver Card

RV905K receiver card/925K Features:

1.Single card can output 16 groups RGBR’ data;

2.Single card can output 24 groups RGB data；

3.Single card can output 28 groups RGB data；

4.Single card maximum supports 512X448 pixels；

5.Each interface has VCC pin to get power supply for control system from led module, no need to get extra power supply for control system；

6.Support saving calibration data on module；

7. Support temperature detection；

8.Support the cabinet-door (open/close) monitoring；

9.Two lines fan-speed monitoring；

10.Humidity monitoring (humidity sensor sold separately)；

11. Smoke monitoring (smoke module sold separately)；

12.Three lines voltage monitoring: one for the system, two for cabinet power;

13. Support pixel-by-pixel brightness calibration; single-card color space conversion；

14.Support network cable BER test；

15.High refresh rate and high grey level with most of the driver ICs；

16.In line with EU standards RoHS；

17.In line with EU standards CE-EMC.

---

---
